In recent years, laser technology has been widely used in the field of Jinli plate cutting, and the domestic CNC laser cutting machine industry has developed rapidly. Laser cutting is a method of cutting by using high-density energy laser irradiation to heat and melt (evaporate) the material. When the laser cutting machine cuts the workpiece, the auxiliary gas and the laser beam are coaxially sprayed, and a large amount of smoke is generated during the cutting process. Laser cutting produces extremely fine particles of mixed smoke or aerosol, generally only a few microns, which will irritate the eyes and respiratory system, causing physiological irritation reactions such as coughing and eye irritation, and may even cause chronic lung diseases such as pneumoconiosis. If there is no dust removal device or the dust removal effect is not good, the cutting smoke will not only pollute the cutting head of the precision parts, affecting the basic life and stability of the parts, but also seriously pollute the working environment and endanger the health of the staff. Therefore, the laser cutting dust removal system is becoming more and more important.
Solution:

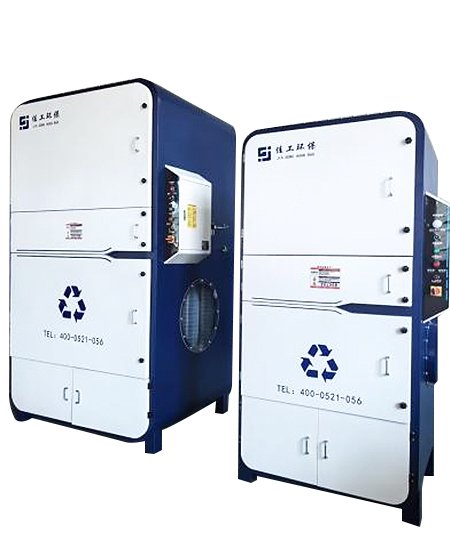

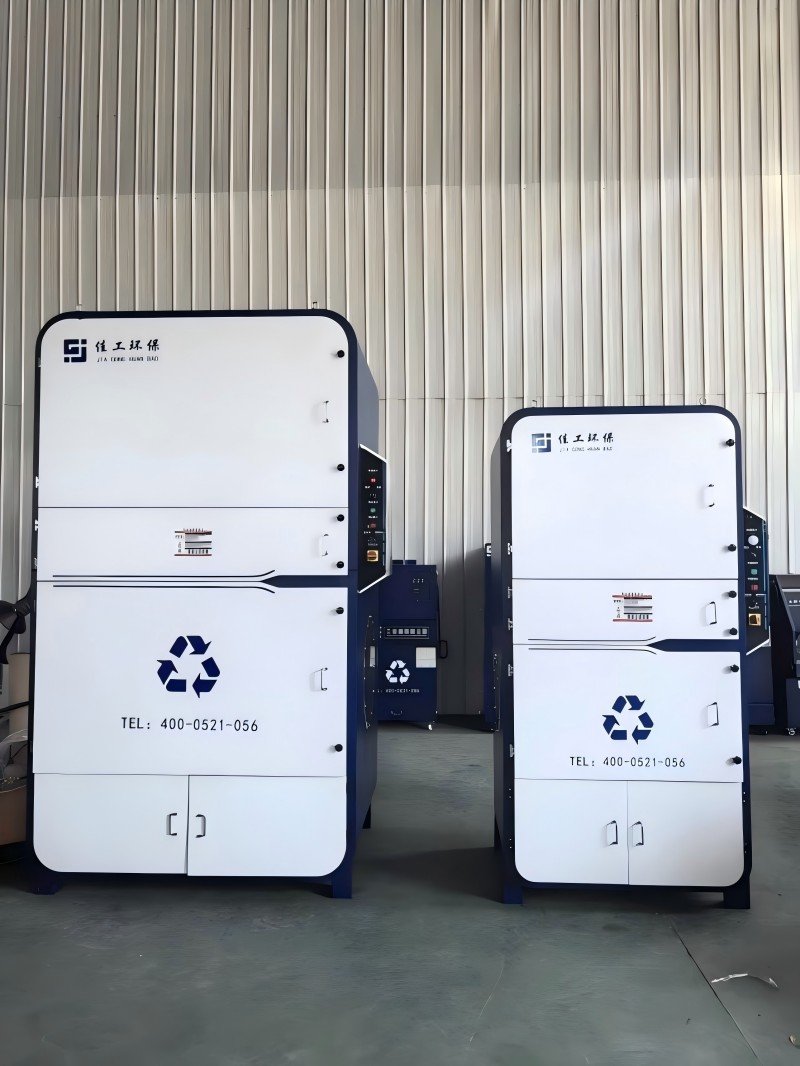

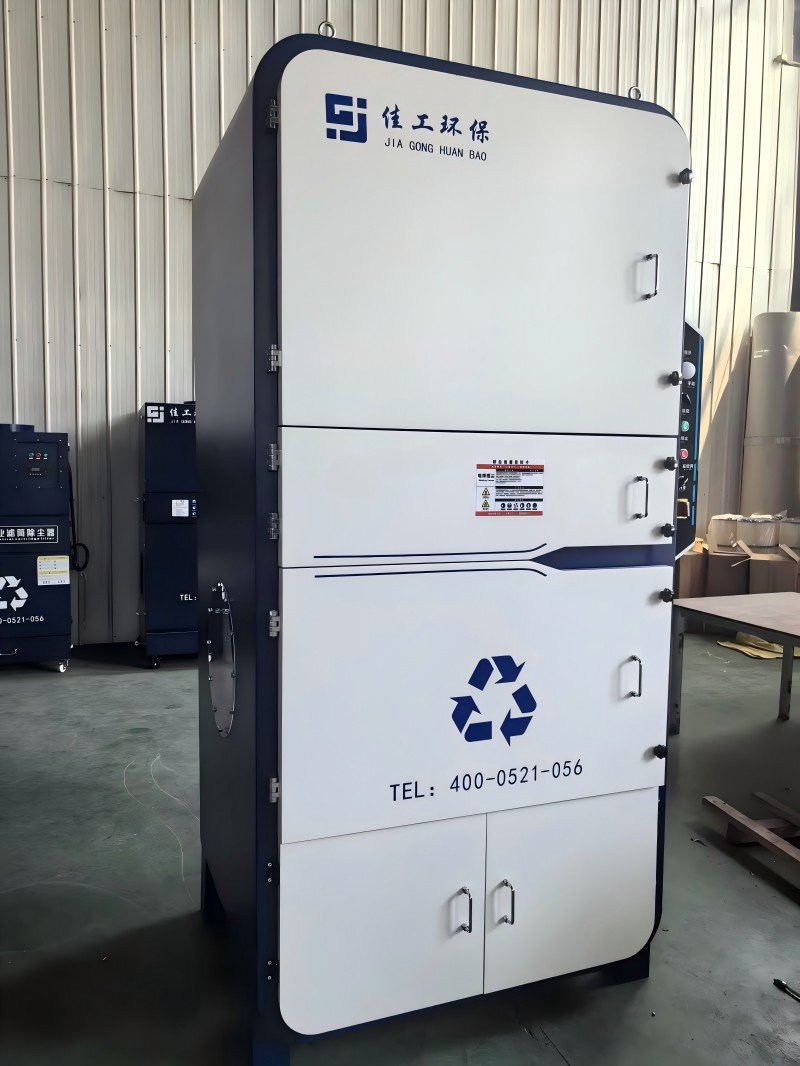

For the small dust particles, large laser cutting machine bed size, and long internal air suction duct in laser cutting/welding and other working conditions, Jiagong Environmental Protection has specially developed the Pro Max series of laser matching dust purifier products. This series of dust collectors are equipped with high-efficiency ventilators, high-quality nano flame-retardant filter materials, spark arresters, thickened metal fireproof nets, etc., and are equipped with an efficient pulse automatic back-blowing cleaning system, which can effectively remove the smoke clogged on the filter element, so that the dust collector can operate more stably for a longer time and extend the service life of the filter cartridge. Its more compact design concept makes the product have good dust removal performance, small size, low noise, and high safety performance, which can help metal processing customers better solve the problem of smoke pollution in the laser cutting/welding process.
Product Features:
Industrial dust removal machine
01. Compact design, good performance: The product has a compact structure, simple management and maintenance, and excellent performance.
02. Triple fire safety protection: spark arrester, high-efficiency metal fireproof net, and high-quality nano flame-retardant filter material triple safety protection to escort safe production.
03. High-performance fan, strong suction: The brand's high-efficiency fan has high negative pressure and large air volume, which can effectively deal with laser smoke.
04. High-efficiency automatic pulse cleaning system: The high-efficiency automatic pulse cleaning system can better clean the filter cartridge, maintain the dust removal performance, and extend the life of the filter cartridge.
The workpieces in the workshop are large, the welding points are not fixed, the workpieces need to be hoisted and turned, and it is inconvenient to install the suction arm. What type of dust removal equipment is needed?
Solution:
If there is no way to deal with it point-to-point, you can use the method of space management and use an industrial dust removal machine. The industrial dust removal machine adopts the principle of layered air supply purification. The welding workshop is a workshop with a heat source and has a stable temperature gradient at height. Taking advantage of this feature, the self-circulating purification equipment is designed to use side air supply and upper exhaust to deal with workshop smoke and dust. It has the advantages of small footprint, free combination, single independent control, and convenient layout.
Industrial dust removal machine:
01. Easy to install, only need to connect to power and compressed air.
02. It can be placed anywhere in the workshop without pipeline installation, which is more convenient to move and has low installation cost.
03. The pulse backblowing device cleans the filter cartridge to ensure that the equipment has a constant air volume and extend the service life of the filter cartridge.
04. Indoor circulation has basically no effect on the original temperature of the workshop.
05. Frequency conversion control, multi-speed adjustment, low power, large air volume, energy saving and power saving.
