Industrial dust removal machine

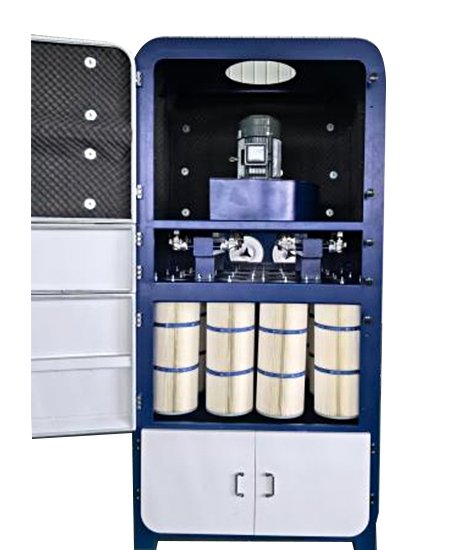

Pulse filter cartridge dust collector is generally equipped with air inlet and outlet, filter cartridge, air bag, pulse controller, injection valve, injection pipe and other combinations. The filter cartridge of the dust collector is usually folded and rolled with polyester fiber. Its lower end is closed and the center of the upper end is facing the lower end of the injection pipe. After the dust-laden gas enters the dust collector from the air inlet, the air flow speed slows down, the coarse particles separate from the air flow and settle in the dust collecting chamber, the fine dust is blocked on the outer surface of the filter cartridge when passing through the filter cartridge with the air flow, and the clean gas is discharged from the air outlet;

When the dust layer on the filter cartridge surface of the pulse filter cartridge dust collector is thick, the pulse controller issues a command and opens the injection valve, the compressed air in the air bag is ejected at high speed through the injection pipe, and at the same time induces the surrounding air several times the injection volume to enter the filter cartridge, and quickly ejects from the inside to the outside, blowing the dust on the outer surface of the filter cartridge into the dust collecting chamber, and finally discharged from the ash hopper. The dust collector is cleaned by pulse injection, which not only achieves thorough cleaning, but also does not damage the filter cartridge, making the filter cartridge of the pulse filter cartridge dust collector have a longer service life. The cleaning process is automatically controlled by the pulse controller without human control, and the pulse filter cartridge dust collector can be controlled by pressure difference control or time interval.
